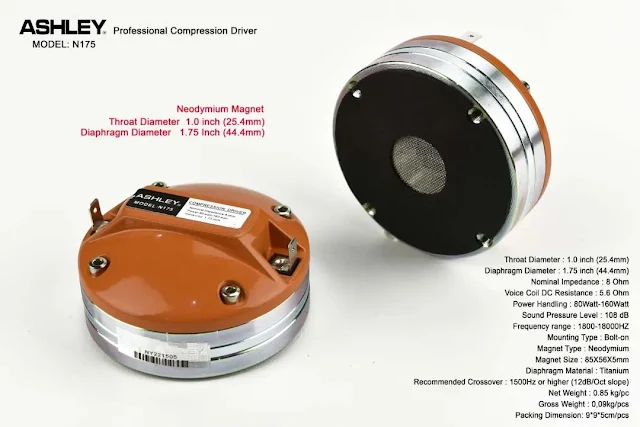

Ashley N175

N175

Professional Compression Driver Neodymium Magnet

Spesifikasi

• Throat Diameter 1.0 inch (25.4mm)
• Diaphragm Diameter 1.75 Inch (44.4mm)
• Throat Diameter: 1.0 inch (25.4mm)
• Diaphragm Diameter: 1.75 inch (44.4mm)
• Nominal Impedance: 8 Ohm
• Voice Coil DC Resistance: 5.6 Ohm
• Power Handling: 80Watt-160Watt
• Sound Pressure Level: 108 dB
• Frequency range: 1800-18000HZ
• Mounting Type: Bolt-on
• Magnet Type: Neodymium
• Magnet Size: 85X56X5mm
• Diaphragm Material: Titanium
• Recommended Crossover: 1500Hz or higher (12dB/Oct slope)
• Net Weight: 0.85 kg/pc
• Gross Weight: 0,09kg/pcs
• Packing Dimension: 9*9*5cm/pcs
